Svenska Pulser 230/400 V Updated: 2025-06-23
| 9510032 - | Pulser 230/400 V |

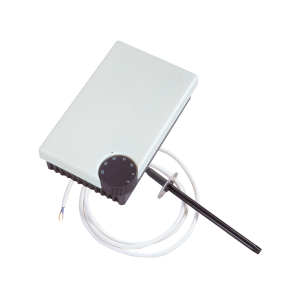

Pulser is a complete proportional controller for electric heating (time proportional).
Pulser can be connected to single or 2-phase voltage and has a built-in sensor and set point adjustment.
Max outputs 3.6 kW (230 V) or 6.4 kW (400 V).
Technical data:
Max. output: 16 A
Pulse period: 60 sek
Dimensions: 94 x 150 x 43 mm
Pulser can be connected to single or 2-phase voltage and has a built-in sensor and set point adjustment.
Max outputs 3.6 kW (230 V) or 6.4 kW (400 V).
Technical data:
Max. output: 16 A
Pulse period: 60 sek
Dimensions: 94 x 150 x 43 mm
|
Pulser 230/400 V 9510032 |
||
|---|---|---|
| Parameter | Value | Unit |
| Frequency | 50/60 | Hz |
| Weight | 0.3 | kg |
| Enclosure class | 20 | IP |
| Voltage range | 210-415 | V |
